Cleaning of stainless steel parts

Cleaning of stainless steel parts

1165583
  • Parts have to be oil free and without chips
  • Individual part weight should not exceed 8kg
  • Minimal part size: 0.5mm x 0.5mm x 0.5mm
Cleaning class
Part dimensions
Geometry

Volume discounts

Quantity Unit price
from 11 pcs. 7.95 €
from 51 pcs. 6.65 €
14.99 €

Cleaning of stainless steel parts

1165583

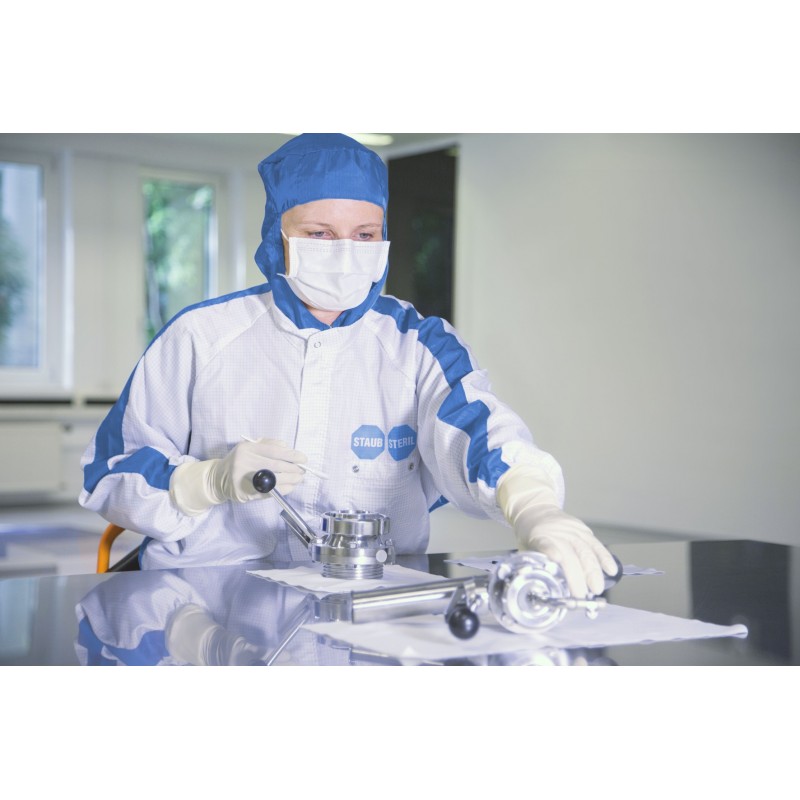

The parts to clean have to be provided oil free and without chips. Deviations lead to a price increase of 30% on top of the cleaning cost. Individual parts should not exceed 8kg. The part size should not be less then 0,5 x 0,5 x 0,5mm3. We are working under cleanroom condition class 6 according to DIN ISO 14644.

The cleaning class I contains washing in an ultrasound bath as well as two times rinsing with ultrapur water. After a nitrogen purge the parts will be double packed. The primary package is using a 100µm thick purple foil and the secondary packing uses a 200µm thick white foil.

The cleaning class II contains washing in an ultrasound bath as well as two times rinsing with ultrapur water. After a nitrogen purge and a following bake out, the parts will be double packed. The primary package is using a 100µm thick purple foil and the secondary packing uses a 200µm thick white foil.

The cleaning class III contains washing in an ultrasound bath as well as two times rinsing with ultrapur water. After a nitrogen purge a bake out and a following ozon treatment, the parts will be triple packed. The primary package is using a 100µm thick purple foil, the secondary and third packing uses a 200µm thick white foil.

We will be happy to provide you with your individualized quote for differing parts. We are also capable to provide additional services like manufacturing, measuring, quality checks, documentation, surface treatment, orbital welding, assembly in cleanrooms as well as functional test. Just get in touch wiht us.
